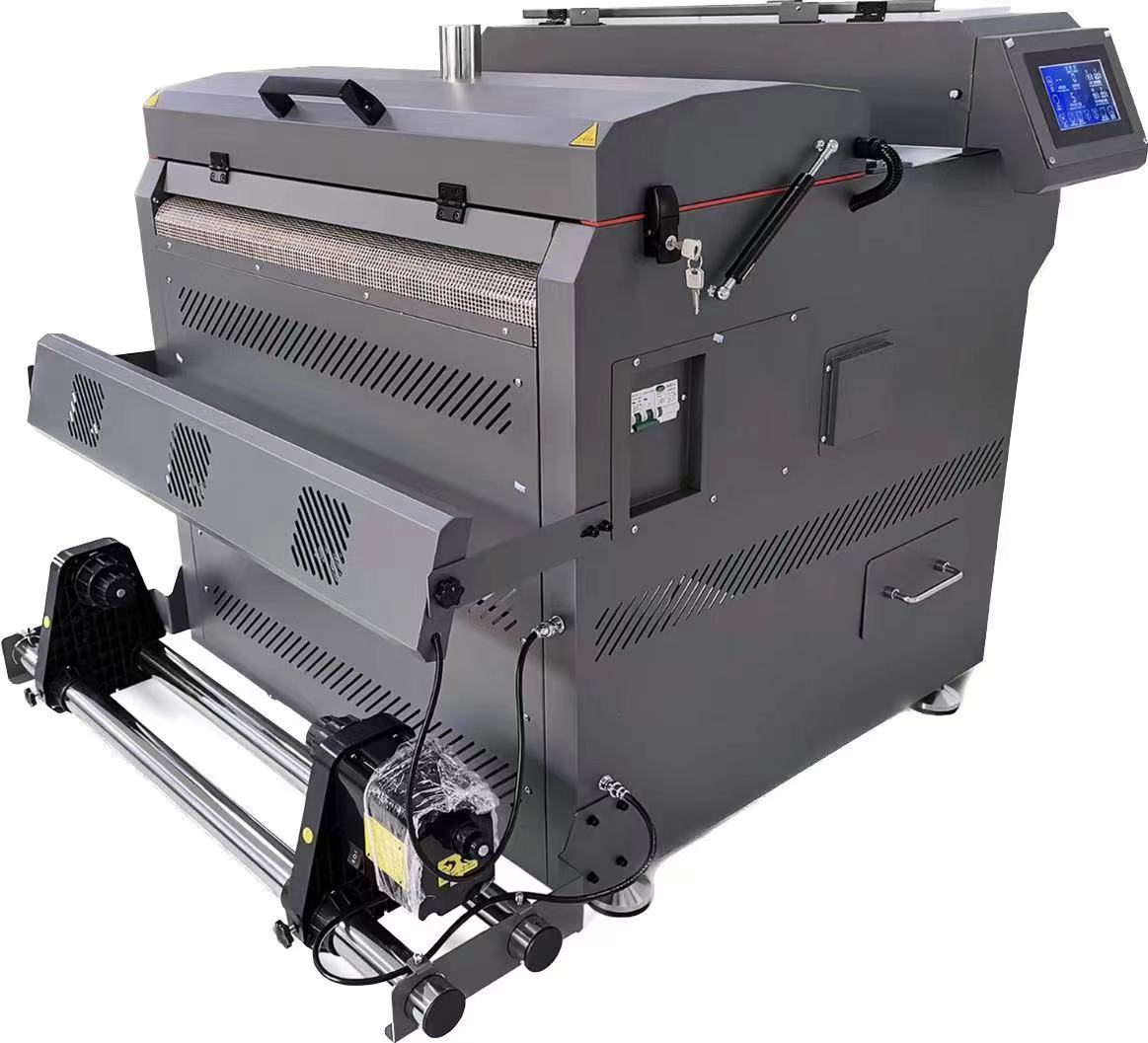

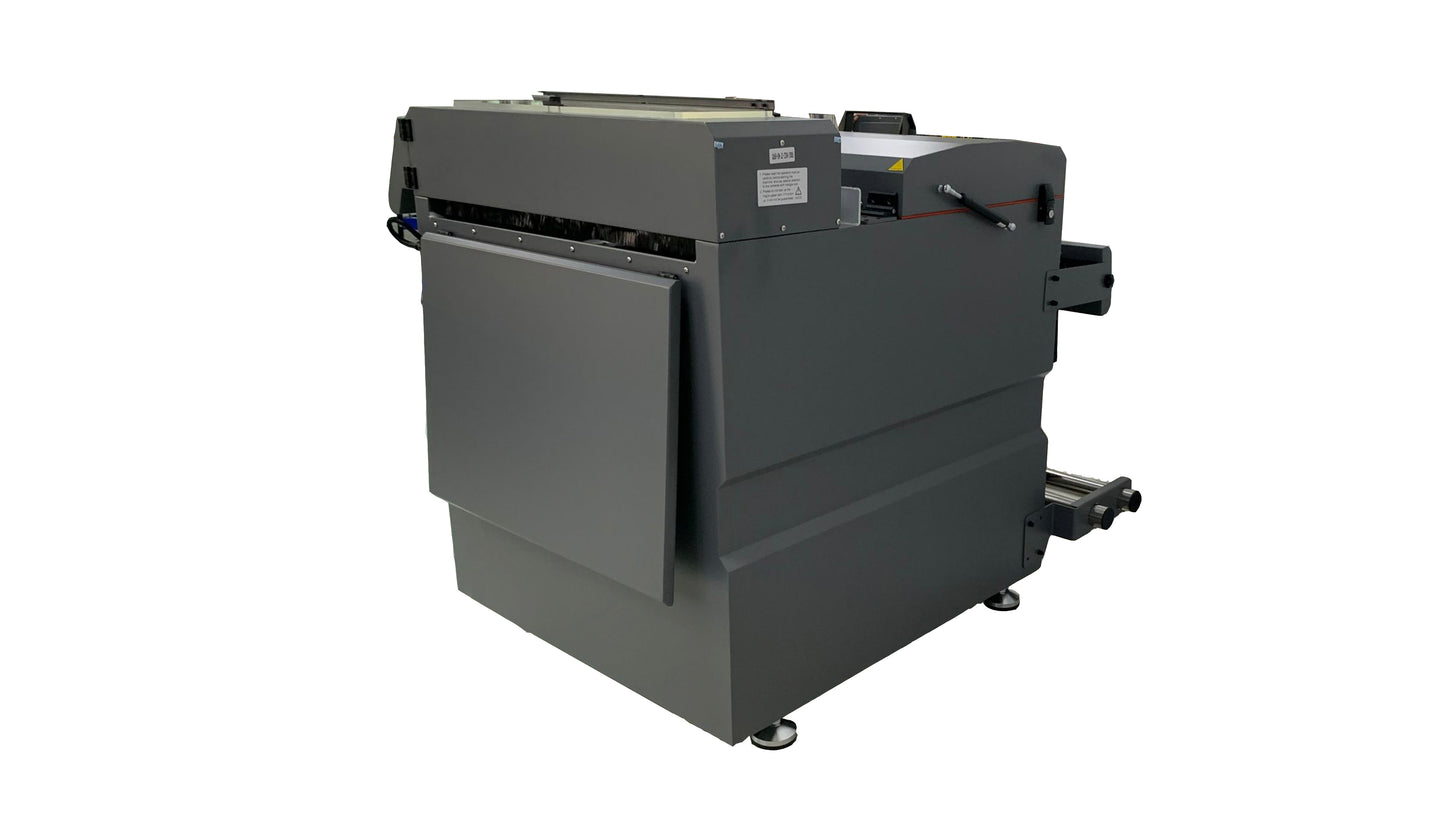

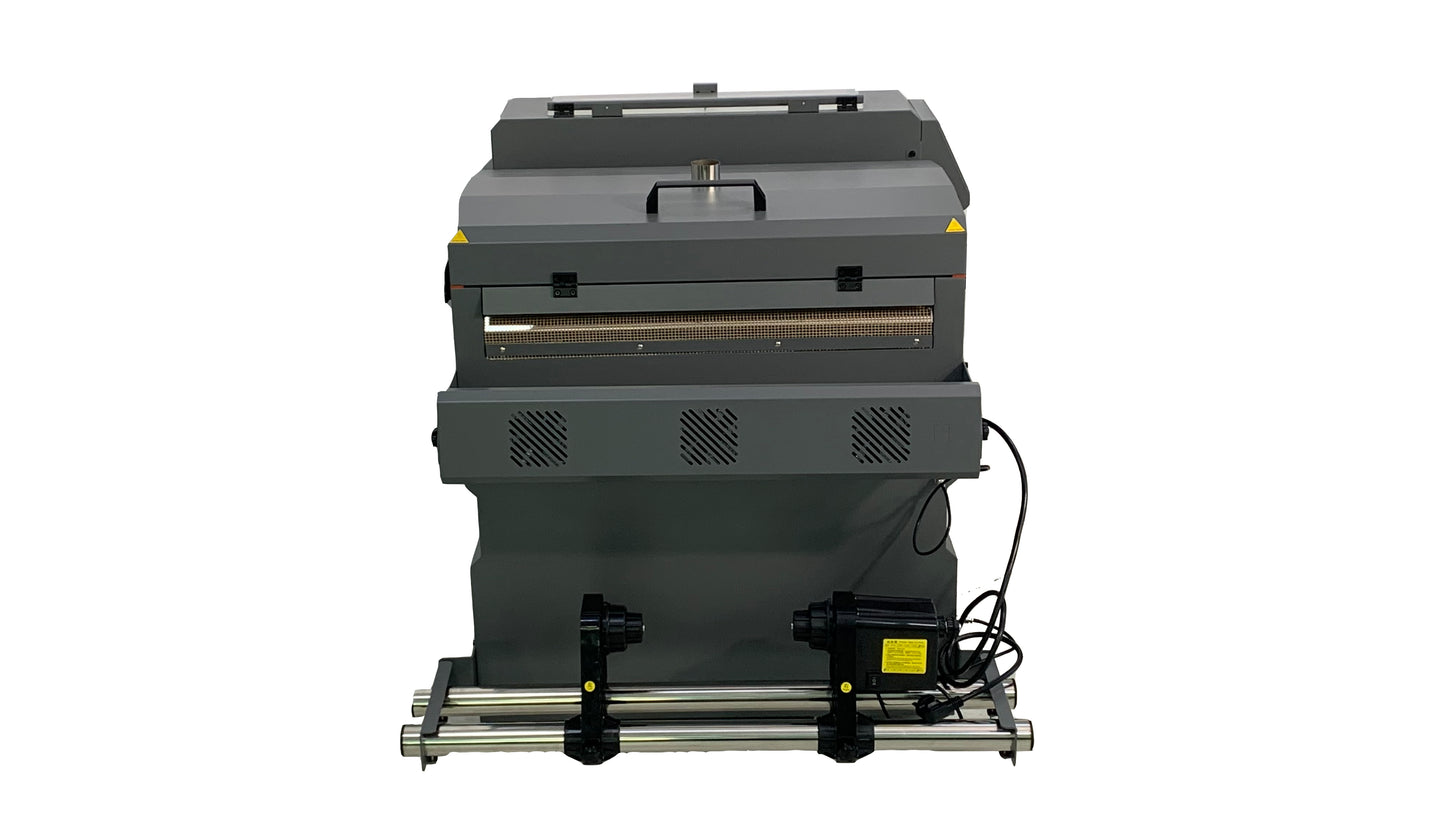

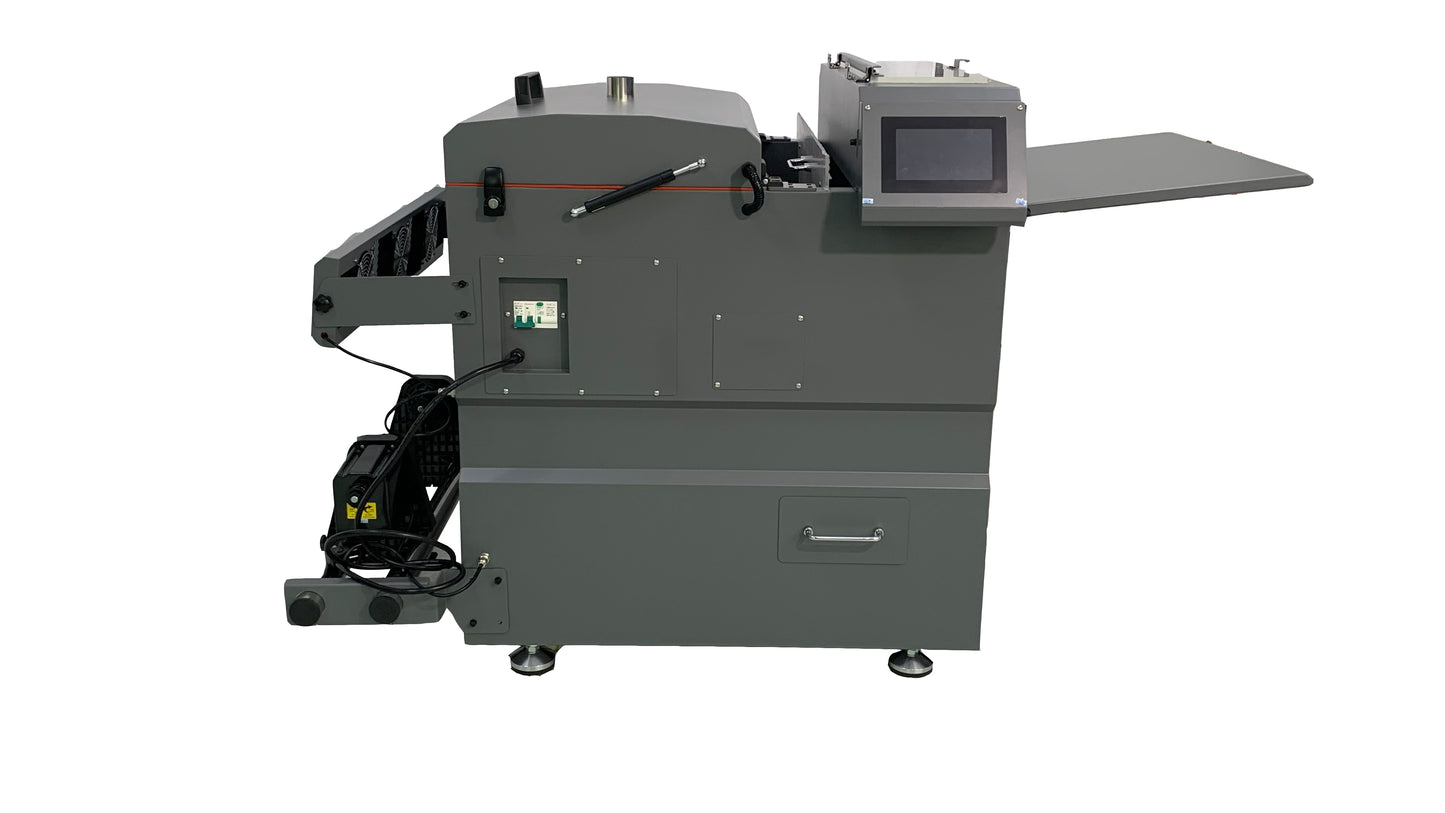

24in Entry Level Automatic Adhesive Powder Shaker and Dryer

Specifications:
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 3 fan air cooling (Single row)
Machine Size: 35.4in x 33.1in x 42.6in (900mm x 840mm x 1082mm)
Machine Weight: 280lbs (140kg)
Packaging Size: 47.2in x 40.9in x 44.9in (1200mm x 1040mm x 1140mm)
Gross Weight: 396lbs (180kg)

Requirements:
Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 20A, 3500W

Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Features:
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
